OMERO.figure

A very helpful feature of OMERO is the ability to generate figure panels of your images directly from the web interface. It is possible to:

• add labels to the images in your figure, based on the metadata stored in OMERO.
• add scale bars, and assure consistent image display settings across all images in your figure.
• export figures as high-quality PNG or PDF files. It is possible to include the original images and a reference to the image data in OMERO.

Recommended Resources

• A user manual on OMERO.figure: https://omero-guides.readthedocs.io/en/latest/figure/docs/omero_figure.html
• An extensive tutorial on OMERO.figure: https://downloads.openmicroscopy.org/help/pdfs/figure.pdf
• You can also watch this video tutorials on how to build figures on the official OMERO website https://www.openmicroscopy.org/omero/figure/

Directly exporting a figure from OMERO.web

Apart from OMERO.figure, you can also create simple figures directly from the OMERO.web interface. This is a quick way to generate figures of your images or wells.

1. Select the dataset or plate where you are interested in and click on one or multiple wells or images images.
2. Click on the publication options button (figure 1).
3. Now you will get three options: Split View figure (1), Thumbnail figure (2) and Make Movie (3, only when you have time series). The split view figure will create a split view (figure 2) of the selected well(s), the thumbnail will create an small image (or set of images of your plate) and the movie makes a movie.
4. Choose the option you would like and follow the steps in the menu. Once the figure/movie is ready, you can download it or show it in the browser by clicking on the [Activities] button and choose one of the options.

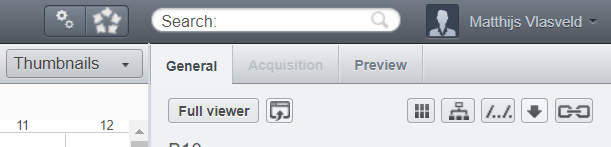

Figure 1. You can find the publishing button at the button with 6 small rectangles.

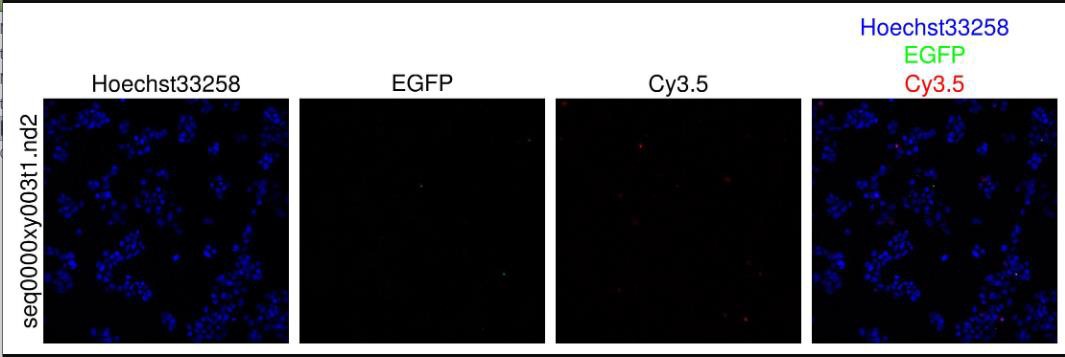

Figure 2. Output of the split view figure option. Here you see the different channels and a merged channel with the colors indicating the corresponding channel.
